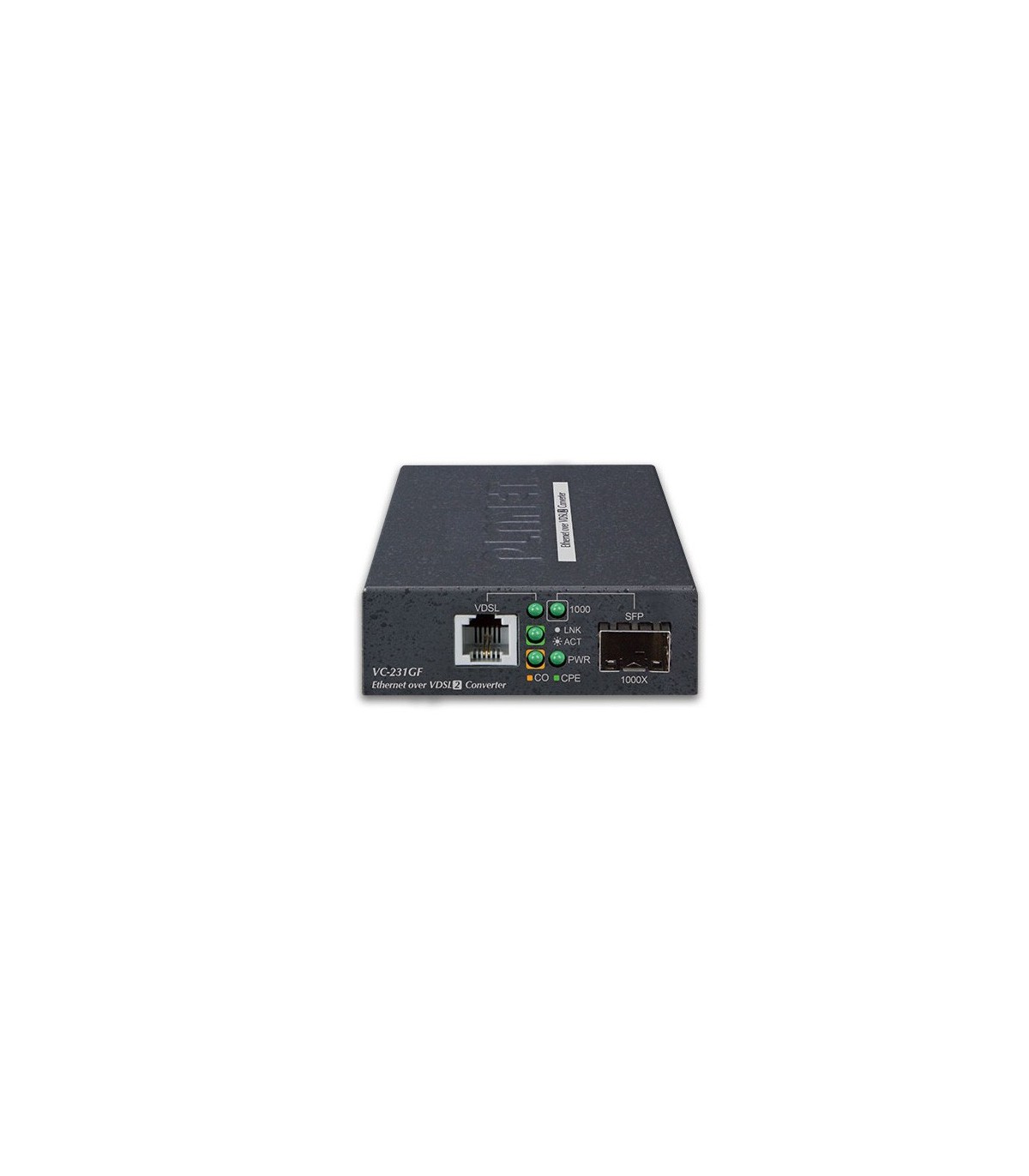

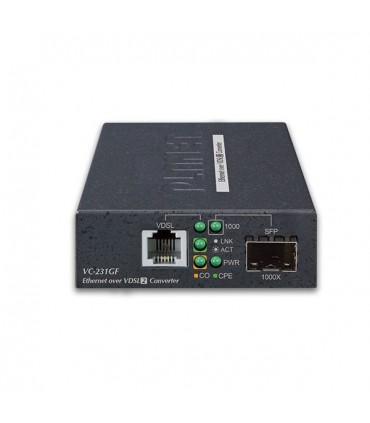

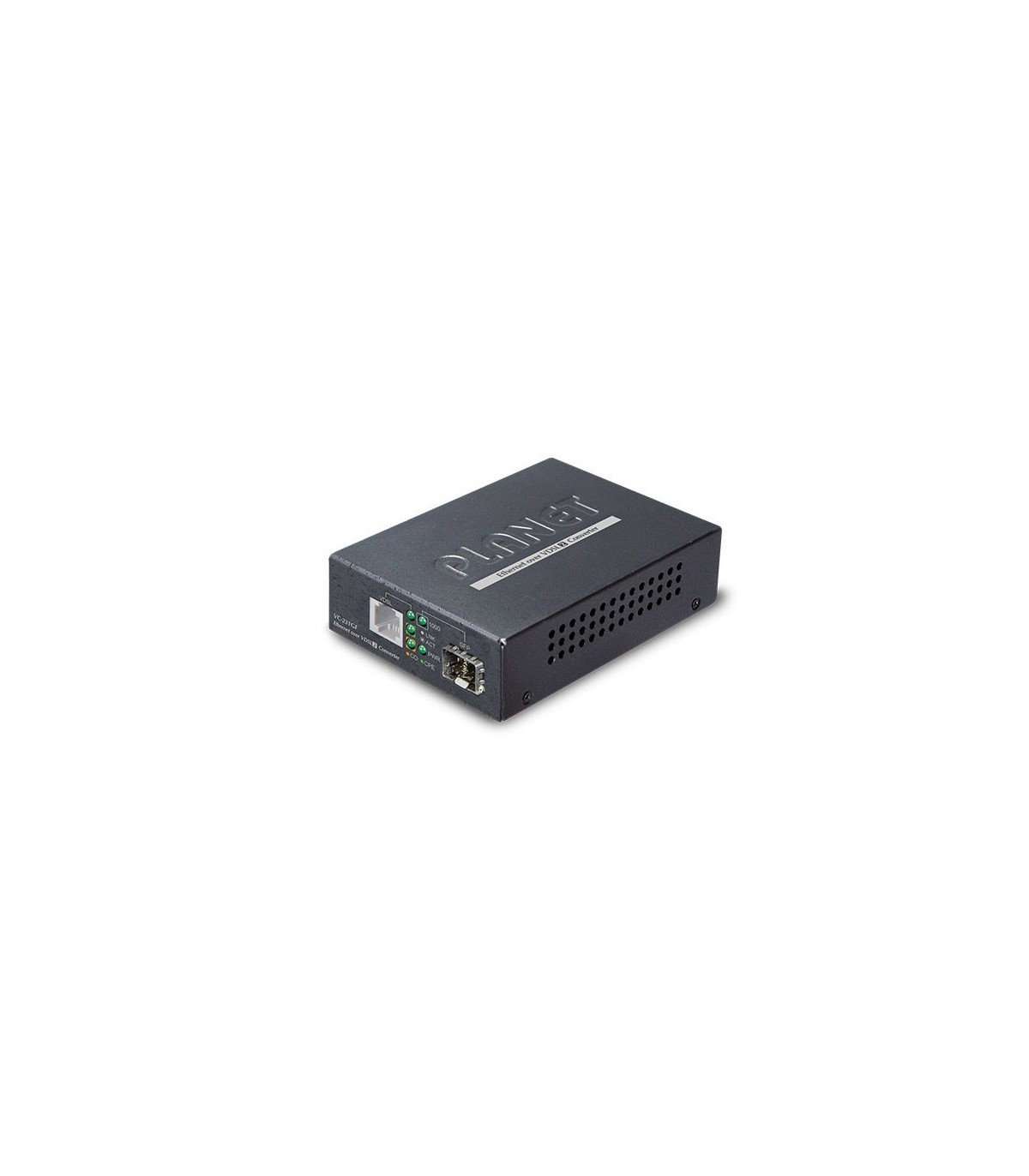

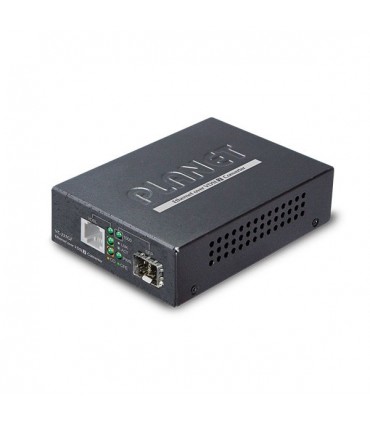

Convertitore Ethernet 1-Porta 1000X SFP + 1-Porta RJ11 VDSL2 -30a (con G.Vectoring)

Riferimento:VC-231GF

Descrizione

VC-231GF Convertitore Ethernet 1-Porta 1000X SFP + 1-Porta RJ11 VDSL2 -30a (con G.Vectoring)



Specifiche Tecniche
LAN Port 1 1000BASE-SX/LX SFP interface
VDSL Port 1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone Port Additional splitter for POTS connection
DIP Switch & Functionality 4-position DIP switch
■ CO or CPE mode selectable
■ Selectable G.INP and interleaved mode
■ Selectable target band plan
■ Selectable target SNR mode
LED Indicators 1 Power: Green
1 1000BASE-SX/LX LNK/ACT: Green
1 VDSL: Green
1 CO: Green
1 CPE: Green
ESD Protection 6KV DC
Enclosure Metal
Installation Wall mount or DIN rail with optional kit
Dimensions (W x D x H) 97 x 70 x 26 mm
Weight 206g
Power Requirements DC 5V, 2A external power
Power Consumption 4.3 watts/14BTU (maximum)
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Maximum Packet Size 1522bytes
System Specifications
VDSL Compliance VDSL-DMT
■ ITU-T G.993.1 VDSL
■ ITU-T G.997.1
■ ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
■ ITU-T G.993.5 G.Vectoring
■ ITU-T G.998
■ G.INP
ADSL Compliance Capable of ADSL2/2+ standard
■ ITU G.992.3 G.dmt.bis
■ ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbps
Performance* (Downstream/Upstream)
  • Interleave, Asym, 8dB

 200M ----> 190Mbps/87Mbps
 400M ----> 161Mbps/60Mbps
 600M ----> 118Mbps/36Mbps
 800M ----> 59Mbps/24Mbps
 1000M --> 47Mbps/7Mbps
 1200M --> 39Mbps/4Mbps
 1400M --> 25Mbps/4Mbps

  • Interleave, Sym, 8dB

 200M ----> 147Mbps/139Mbps
 400M ----> 112Mbps/110Mbps
 600M ----> 75Mbps/73Mbps
 800M ----> 44Mbps/44Mbps
 1000M --> 26Mbps/25Mbps
 1200M --> 24Mbps/13Mbps
 1400M --> 20Mbps/9Mbps

  • G.INP, Asym, 8dB

 200M ----> 197Mbps/101Mbps
 400M ----> 168Mbps/65Mbps
 600M ----> 109Mbps/34Mbps
 800M ----> 65Mbps/20Mbps
 1000M --> 53Mbps/7Mbps
 1200M --> 44Mbps/4Mbps
 1400M --> 28Mbps/4Mbps

  • G.INP, Sym, 8dB

 200M ----> 150Mbps/150Mbps
 400M ----> 117Mbps/117Mbps
 600M ----> 77Mbps/77Mbps
 800M ----> 43Mbps/43Mbps
 1000M --> 29Mbps/28Mbps
 1200M --> 27Mbps/15Mbps
 1400M --> 22Mbps/10Mbps

  • Interleave, Asym, 12dB

 200M ----> 178Mbps/84Mbps
 400M ----> 143Mbps/53Mbps
 600M ----> 99Mbps/32Mbps
 800M ----> 48Mbps/22Mbps
 1000M --> 41Mbps/5Mbps
 1200M --> 33Mbps/3Mbps
 1400M --> 23Mbps/3Mbps

  • Interleave, Sym, 12dB

 200M ----> 135Mbps/127Mbps
 400M ----> 96Mbps/96Mbps
 600M ----> 61Mbps/59Mbps
 800M ----> 40Mbps/40Mbps
 1000M --> 23Mbps/18Mbps
 1200M --> 22Mbps/9Mbps
 1400M --> 16Mbps/7Mbps

  • G.INP, Asym, 12dB

 200M ----> 185Mbps/89Mbps
 400M ----> 148Mbps/54Mbps
 600M ----> 95Mbps/32Mbps
 800M ----> 58Mbps/14Mbps
 1000M --> 46Mbps/6Mbps
 1200M --> 37Mbps/3Mbps
 1400M --> 25Mbps/3Mbps

  • G.INP, Sym, 12dB

 200M ----> 140Mbps/140Mbps
 400M ----> 97Mbps/97Mbps
 600M ----> 60Mbps/60Mbps
 800M ----> 35Mbps/35Mbps
 1000M --> 26Mbps/21Mbps
 1200M --> 25Mbps/11Mbps
 1400M --> 18Mbps/8Mbps
Standards Conformance
Standards Compliance IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
xDSL Compatibility
VDSL2 VC-231G
VC-231GP
VC-234G
VC-231
VC-820M
VDR-301N
* Performace is based on the VC-231GF (CO mode) that coworks with PLANET VC-231G (CPE mode). The actual data rate will vary on the quality of the copper wire and environmental factors.
Dettagli del prodotto
VC-231GF
