Media Converter 10/100/1000T 802.3At Poe+ A 1000Lx/Sx (Mini-Gbic, Sfp) Compact Size (-40 A 75°C)
Media Converter 10/100/1000T 802.3At Poe+ A 1000Lx/Sx (Mini-Gbic, Sfp) Compact Size (-40 A 75°C)

Media Converter 10/100/1000T 802.3At Poe+ A 1000Lx/Sx (Mini-Gbic, Sfp) Compact Size (-40 A 75°C)

Riferimento:IGTP-815AT

Planet
Poe Media Converter 1000Base-X A10/100/1000Base-T Mgbic Sfp
Media Converter 10/100/1000T A 1000Lx (Sc, Sm) -40Km
Media Converter 10/100/1000T 802.3At PoE+ A 1000Lx/Sx (Mini-GBIC, SFP) Compact Size (-40 A 75?C)
Descrizione

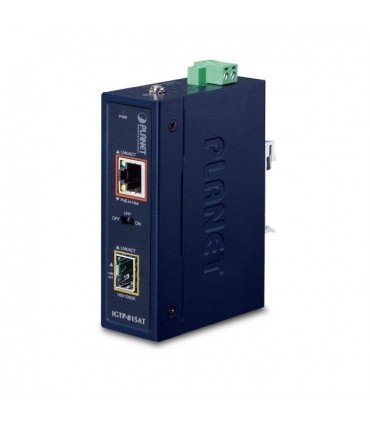

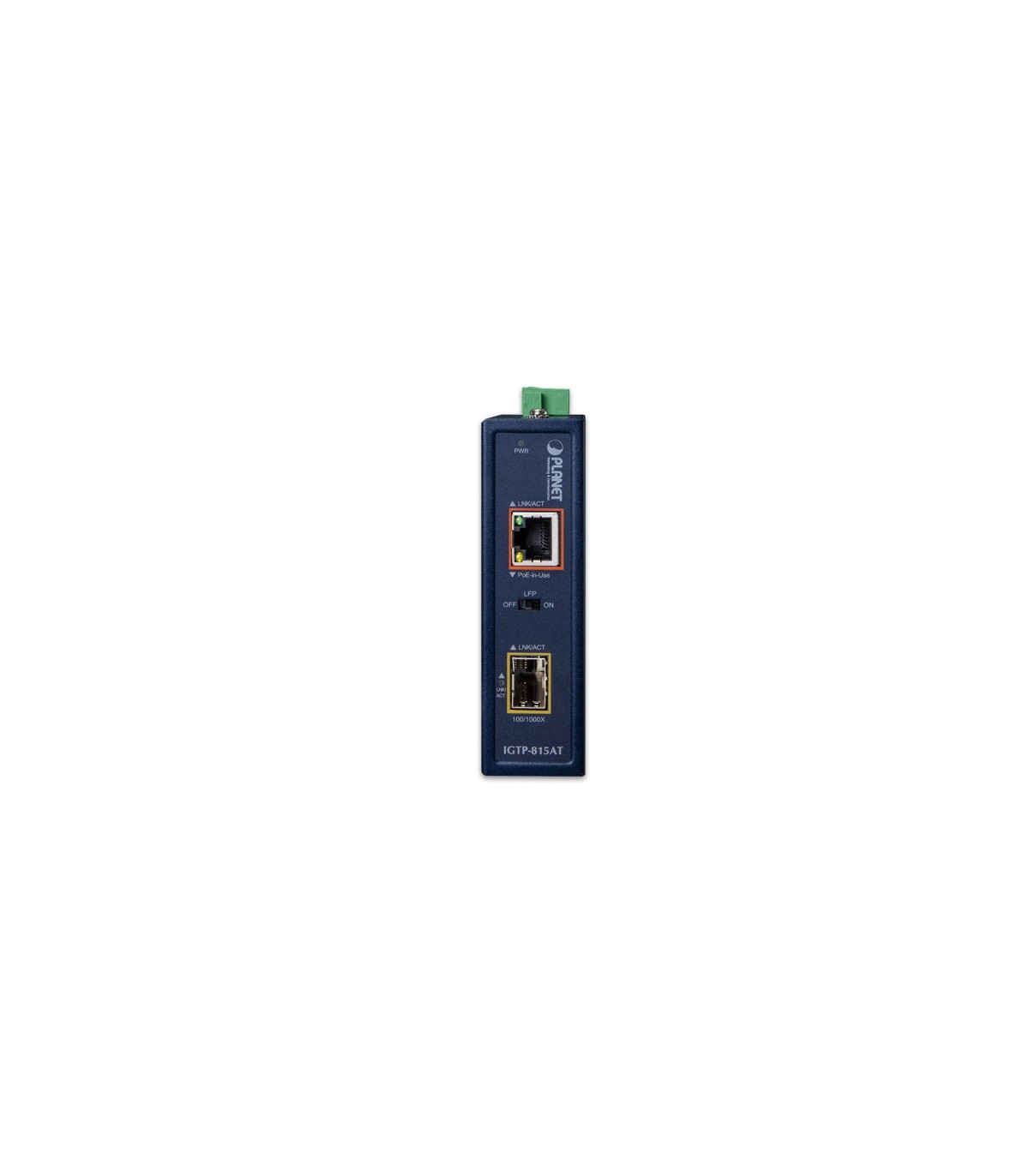

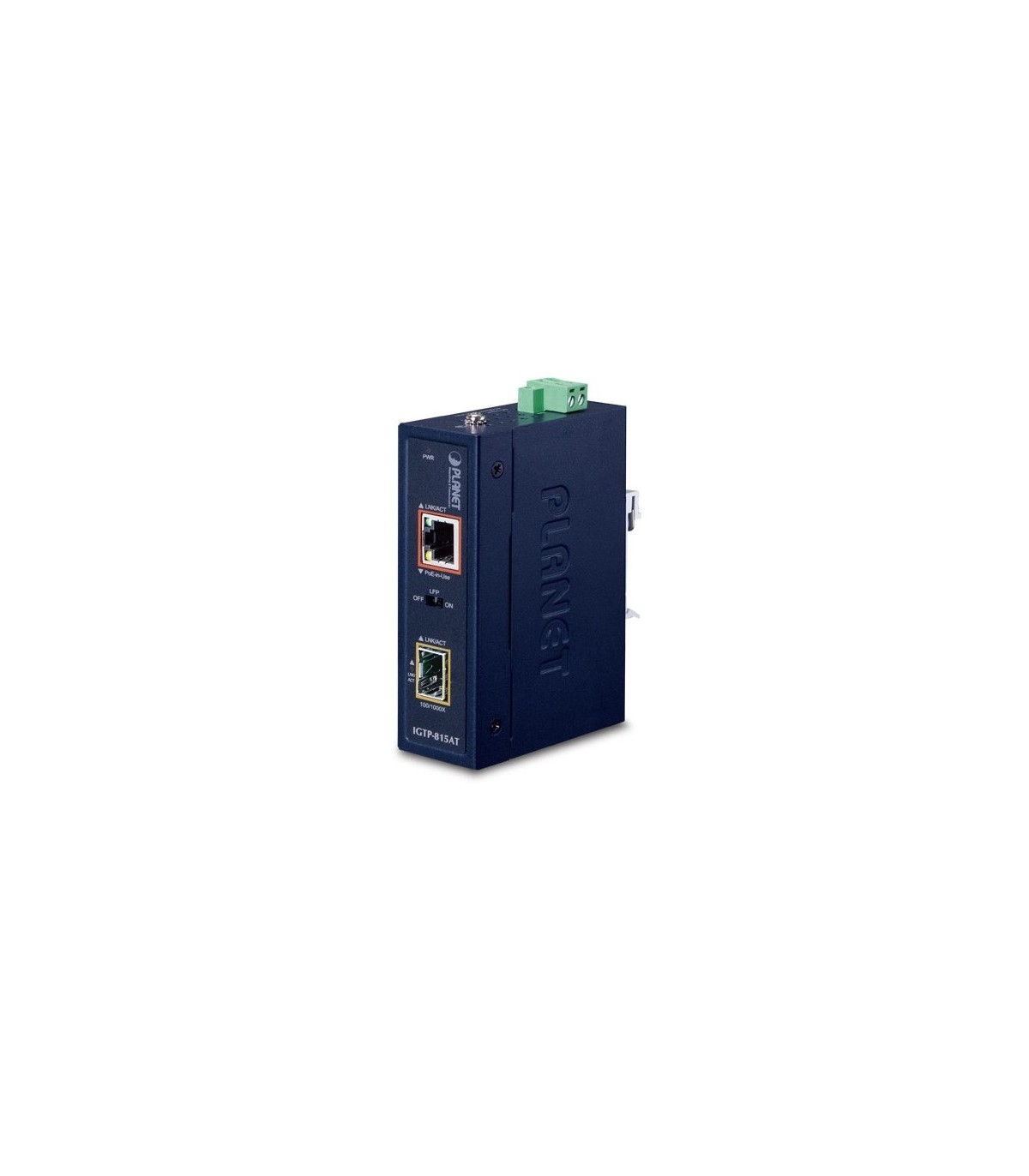

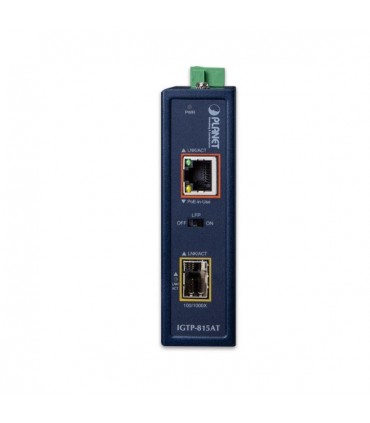

IGTP-815AT Media Converter 10/100/1000T 802.3at PoE+ a 1000LX/SX (mini-GBIC, SFP) Compact Size (-40 a 75°C)



Specifiche Tecniche
Copper Port 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance.
Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Slot 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size 9K
LED System: Power (Green)
Fiber 100/1000BASE-X: LNK/ACT (Green)
TP 10/100/1000BASE-T: LNK/ACT(Green)
PoE: Power-in-use (Amber)
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 251g
Power Requirements DC 48~56V, supports reverse polarity protection
(>51V DC for PoE+ output recommended)
Power Consumption System ON without loading
　DC 48V: 0.96W
　DC 56V: 1.12W
Full loading with PoE
　DC 48V:36.48W(PoE:30W)
　DC 56V:43.12W(PoE 36W)
DIP Switch Link Fault Passthrough Enable/Disable
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount ear
ESD Protection 6KV DC
Cables 10/100/1000BASE-T:
　2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
　EIA / TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
　Multi-mode: 50/125μm or 62.5/125μm optical fiber
　Single-mode: 9/125μm optical fiber
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus
PoE Power Output 48~56V DC: 36 watts max.
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 36 watts
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Protocols and Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
Dettagli del prodotto
IGTP-815AT
