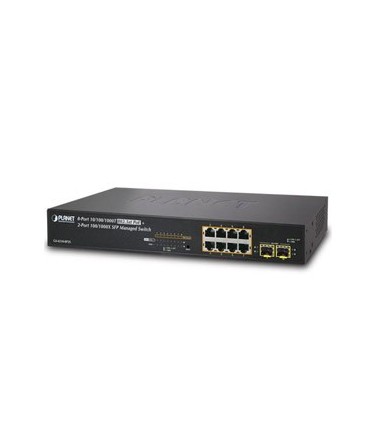

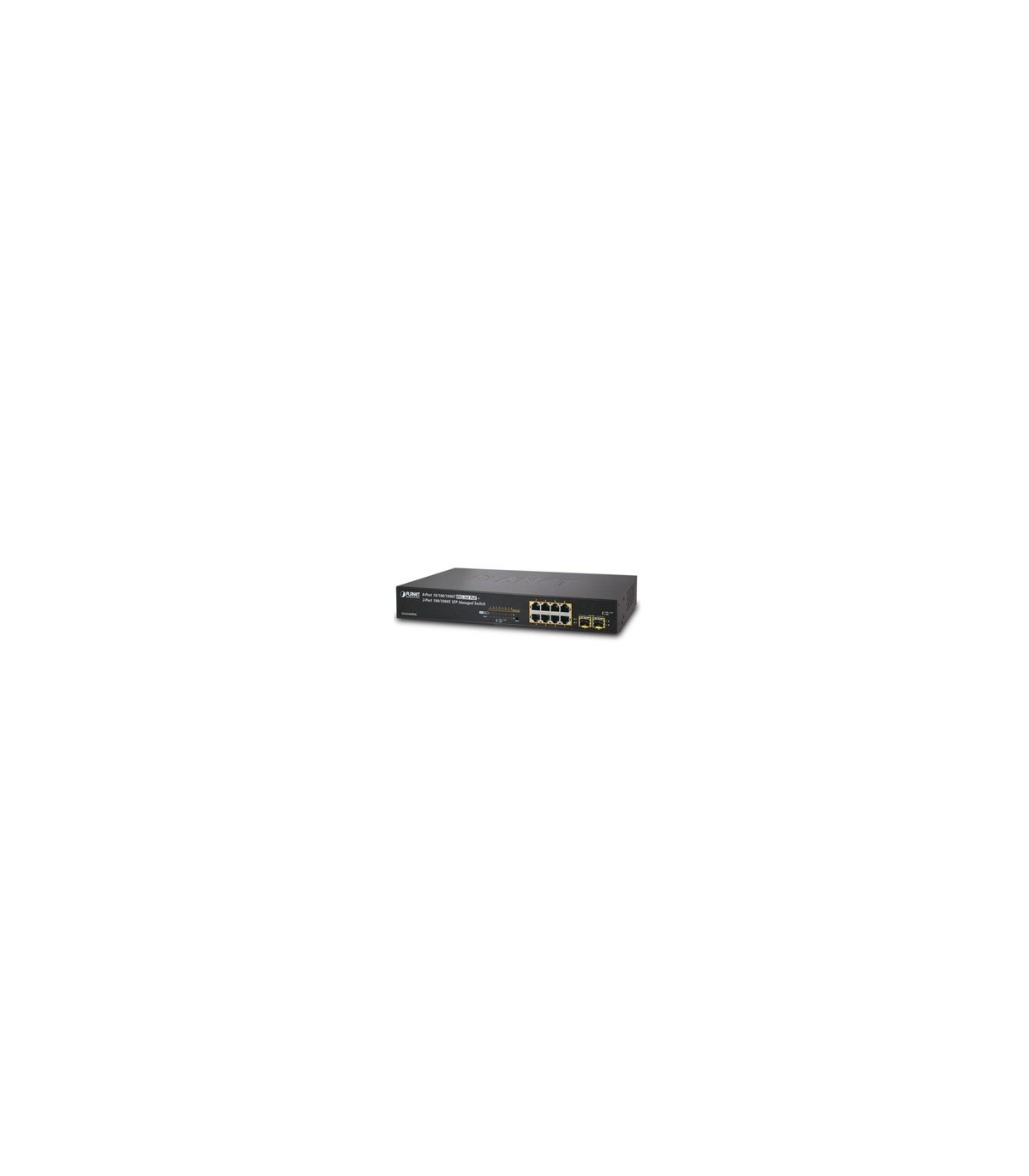

Switch Gigabit Eth. PoE Layer 2 8-Porte 10/100/1000Base-T PoE

Riferimento:GS42108P2S

Descrizione





GS42108P2S Switch Gigabit Eth. PoE Layer 2 8-Porte 10/100/1000Base-T PoE + 2-P. Mini-GBIC (SFP) Opz. - (120W) - 802.3at





Specifiche Hardware
Copper Ports 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP/mini-GBIC Slots 2 x 100/1000BASE-X SFP interface
Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 8 ports with 802.3at / af PoE injector function with port-1 to port-8
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps / non-blocking
Switch Throughput@64Bytes 14.88Mpps
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10K bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED PWR, LNK/ACT, PoE-in-use, 1000, fan alert
Power Requirements 100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H) 330 x 155 x 43.5 mm, 1U height
ESD Protection Contact Discharge 4KV DC
Air Discharge 8KV DC
Enclosure Metal
Weight 1687g
Power Consumption / Dissipation 165 watts (max.) / 563 BTU
Fan 1 x smart fan
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at PoE+ PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC, 36 watts (max.)
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts (max.) @ 25 degrees C
100 watts (max.) @ 50 degrees C
PoE Ability PD @ 9 watts 8 units
PoE Ability PD @ 15 watts 8 units
PoE Ability PD @ 30 watts 4 units
Layer 2 Functions
Port Mirroring TX / RX / both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk
Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping MLD (v1/v2) snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL / MAC-based ACL
QoS 8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
Security IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS / TACACS+ user access authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces Web browser / Telnet / SNMP v1, v2c
Firmware upgrade by HTTP / TFTP protocol through Ethernet network
Remote / Local Syslog
System log
LLDP protocol
SNTP
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE, LVD
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
